Dawes Spire 1.0 Crossbar Electric Hybrid Bike 250W

The Dawes Spire 1.0 Crossbar electric bike features a crossbar frame with an integrated 360Wh battery, providing over 40 miles (64 km) of assisted pedalling. Powered by a Bafang rear hub motor, the bike delivers reliable performance with 32Nm of torque, making uphill climbs and flat terrain effortless. The Samsung battery, which meets strict UK and EU safety standards, can be charged on or off the bike in five hours and is easily removable with an integrated lock for security.

The bike is equipped with an intuitive display system that offers five power assist modes, tracking ride data such as speed, distance, and battery level. A walk assist mode is also included to help push the bike uphill when needed. The Spire 1.0’s Shimano Altus 1x8 speed gearing and Tektro hydraulic disc brakes ensure smooth control and handling, while a 70mm suspension fork with hydraulic lockout absorbs bumps on rough terrain.

Rider comfort is prioritised with a Selle Royal Freeway saddle, ergonomic grips, and alloy city pedals. The 700x45c Kenda tyres provide grip, puncture protection, and increased visibility with reflective detailing. Additionally, the bike comes standard with LED lights powered by the battery, a rear pannier rack, mudguards, and a kickstand, making it a practical choice for commuting and leisure rides.

Maximum Range: 40 miles / 64km
Recharge Time: 5 hours
Maximum Assisted Speed: 15.5mph / 25km/h
Motor: Bafang rear hub motor, 36V 250W, 32Nm torque, 25km/h max speed
Motor Type: Rear hub motor
Motor Torque: 32Nm

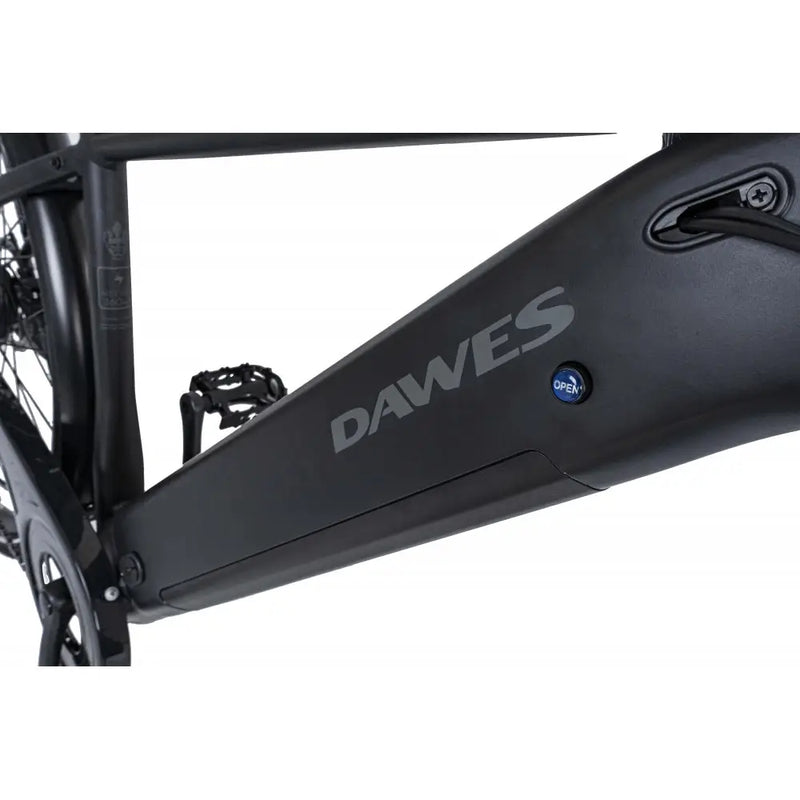

Battery: Integrated 360Wh (36V 10.0Ah), Samsung cells, Removable for charging on or off the bike
Battery Type: Integrated
Charger: 42V 2A, 3-pin UK plug

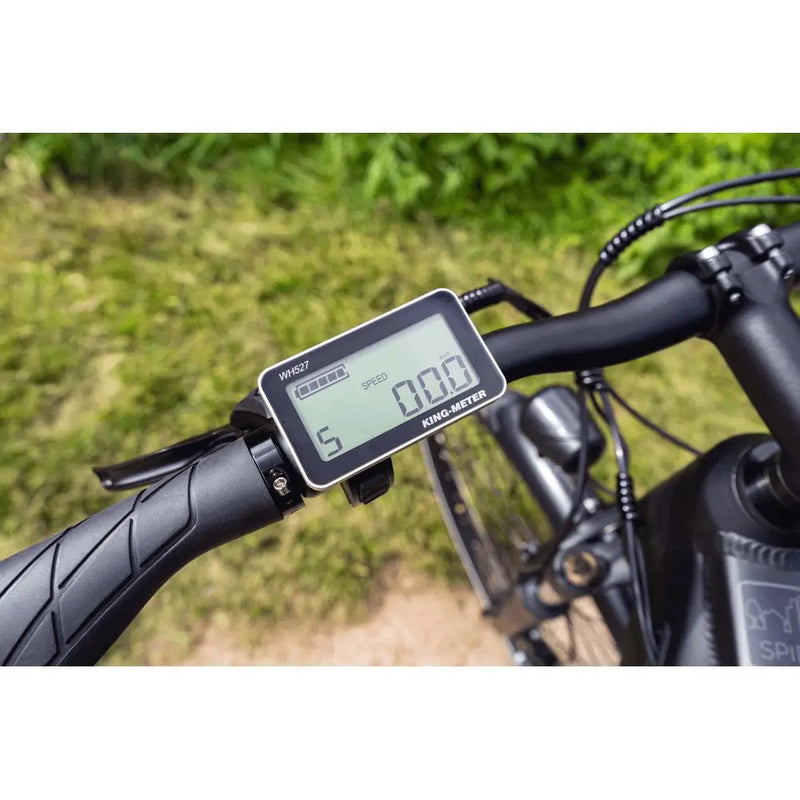

Display: Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time
Speed Sensor: Left hand crank mounted

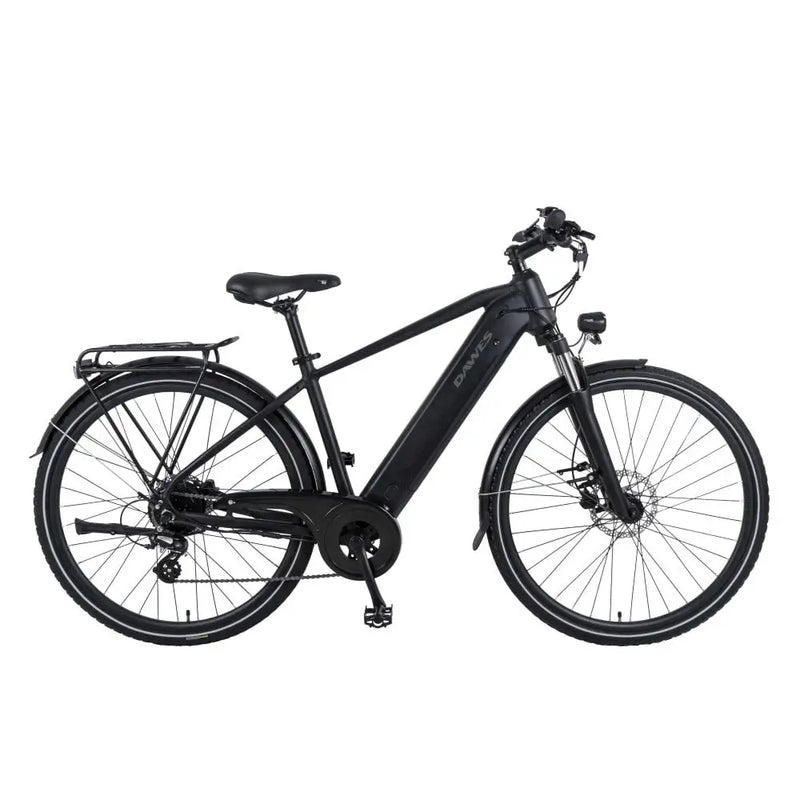

Frame: 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Frame Size: Medium or Large
Fork: 700c suspension fork, Hydraulic lockout, 70mm travel
Headset: Sealed bearings
Handlebar: Aluminium, 680mm wide, 20mm rise, 6° backsweep
Stem: Aluminium, 90mm reach, 31.8mm
Grips: Ergonomic comfort, Lock on, Black
Gear Shifters: Shimano Altus SL-M315 Rapidfire Plus, 8 speed

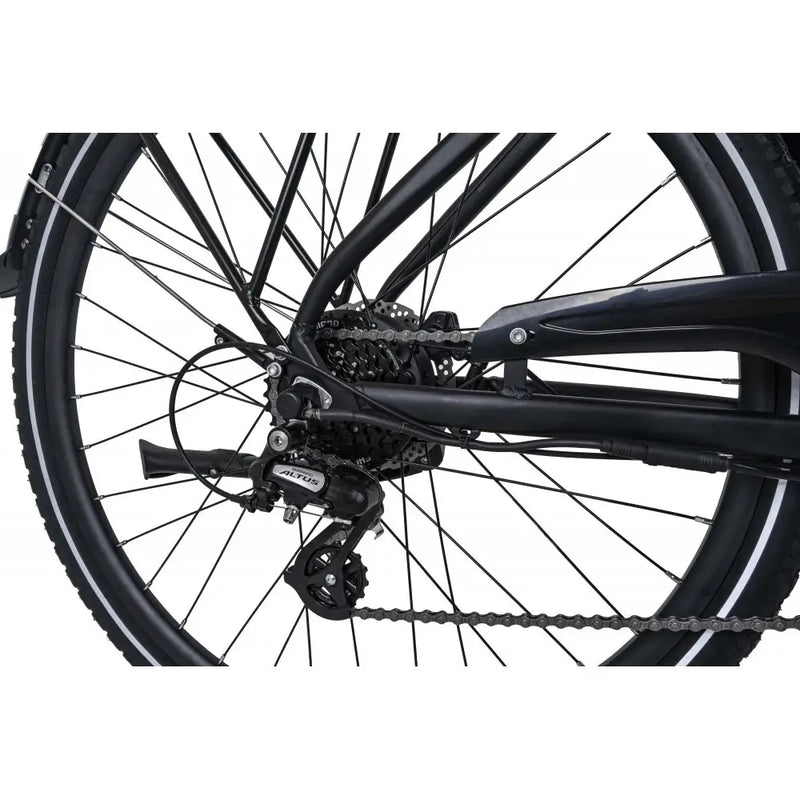

Rear Derailleur: Shimano Altus RD-M310, 8 speed
Chain: KMC Z8.1, 8 speed
Cassette/Freewheel: Shimano Altus CS-HG200, 12-32T, 8 speed
Chainset: Aluminium, 42T, 170mm
Number of Gears: 8
Bottom Bracket: Sealed
Pedals: Alloy city style, Black
Brakes: Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers: Tektro M275 hydraulic disc
Front Hub: Alloy with quick release, 36 hole
Rear Hub: Bafang rear hub motor, 36V 250W, 32Nm torque, 25km/h max speed
Rims: 700c double wall alloy, 36 hole
Tyres: Kenda K197, 700x45c, Puncture protection and reflective side strip
Saddle: Selle Royal Freeway
Seat Post: Aluminium, 350mm, 30.4mm
Lights: Front - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards: Full length, 56mm wide, Black
Kickstand: Chainstay mounted, Aluminium
Pannier Rack: Aluminium with rear light mounted

Dawes electric bikes typically arrive in 2-3 working days of your order date for the 85% assembled models. For this delivery option, the bike is mostly built but the front wheel and brakes/gears will need to be adjusted.

Our Dawes fully assembled electric models take a little longer, typically delivered in 3-6 working days dependant on how busy we are.

Recommended Rider Heights:

Medium: 5'4" to 5'10" (162cm to 178cm)

Large: 5'10" to 6'2" (178cm to 188cm)
