A belt drive e-bike swaps the usual metal chain for a toothed belt made from carbon fibre cords set in polyurethane. It needs no oil, it can't rust, it runs almost silently and it typically lasts two to four times as long as a chain. The trade-offs are fewer gears, a frame that has to be designed for it from the start, and parts that cost more when they do eventually wear out.
For most city riders and commuters, that is a trade worth making. Below we explain how a belt drive works, how it compares with a chain, what upkeep it actually needs and who should (and shouldn't) buy one in 2026.
Belt Drive E-Bikes We Sell
Bike Yard Online (BYO) currently stocks five belt drive e-bikes from E-Go and Hygge. Four are folding bikes and one is a compact city utility bike. All five use a toothed carbon belt instead of a chain, so none of them ever needs chain oil, and each pairs the belt with either hub gears or a single speed.
Folding
18 kg folder with a Gates carbon belt and automatic 3-speed gears.
City utility
20-inch wheels, Gates carbon belt, automatic gears and a 48V battery.

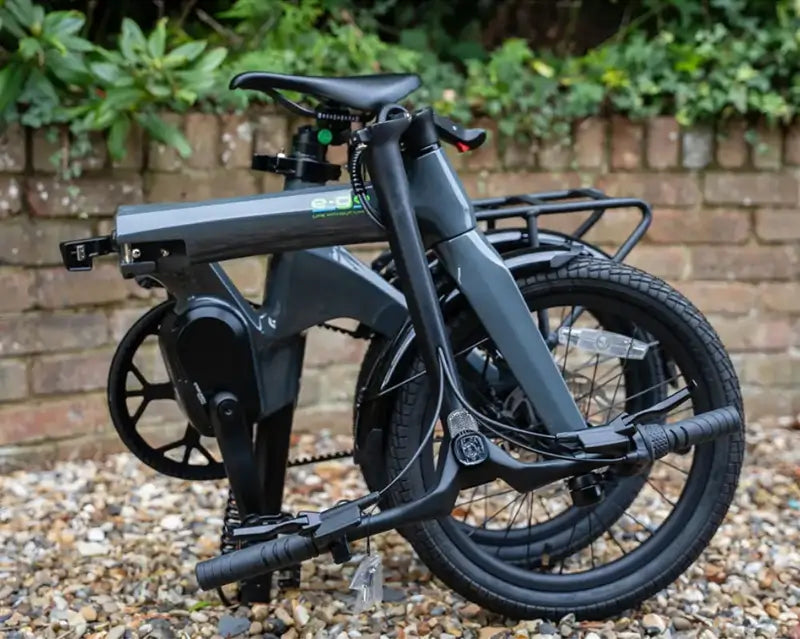

Carbon folder
15.3 kg, 75 Nm mid-drive motor, belt drive and Shimano Nexus 3 hub.
Carbon folder
14 kg single-speed, 75 Nm mid-drive motor and a carbon belt.
What Is a Belt Drive on an E-Bike?
A belt drive is a drivetrain (the parts that carry your pedalling force to the rear wheel) that uses a continuous toothed belt instead of a chain. The belt sits on a front and rear sprocket, much like the cam belt in a car engine. It does the same job as a chain but with no metal links, pins or rollers to wear, rust or need oiling.
The best-known maker is Gates, whose Carbon Drive belts are fitted to both Hygge models we sell. Inside the belt, carbon fibre tensile cords stop it stretching, while the polyurethane body and teeth grip the sprockets.
A standard belt is a single closed loop, so it can't be split and rejoined like a chain. That one fact explains most of the design quirks covered below, from the frame to the gears.
The belt only describes how power reaches the rear wheel - it says nothing about where the motor sits. A hub motor drives the wheel directly, so the belt only carries your leg power. A mid-drive motor (one mounted at the cranks) sends its power through the belt as well - the E-Go CarbonLite models pair a belt with a 75 Nm mid-drive. If you're weighing up the two motor layouts, our hub motor vs mid-drive comparison covers the differences in detail.
Belt Drive vs Chain: What's the Difference?
A belt drive is cleaner, quieter and longer-lasting than a chain, and it needs almost no routine care. A chain is cheaper, easier to replace at any bike shop and works with derailleur gears, which give a wider range for steep hills. Belts suit riders who value low upkeep; chains suit riders who want maximum gear range and cheap parts.
| Feature | Belt drive | Chain drive |
|---|---|---|
| Lubrication | None - runs dry | Regular cleaning and oiling |
| Rust | Can't rust | Rusts if neglected in wet weather |
| Noise | Near silent when set up correctly | Audible, louder when dry or worn |
| Lifespan | Claimed 2-4 times a chain | Shorter, wears faster when dirty |
| Gears | Single-speed, hub gears or a gearbox - never derailleurs | Derailleur or hub gears |
| Frame | Must be designed for a belt | Fits almost any frame |
| Replacement parts | Cost more, fewer shops stock them | Cheap and widely available |
The cleanliness point is bigger than it sounds. No oil means no black ring on your trouser leg, no grime on the carpet when you carry a folder indoors and nothing to clean off a train seat. For anyone who rides in work clothes, that alone can settle the argument.
On efficiency, a chain still edges it. Cycling UK's test of urban belt drive bikes notes that belt systems lose a little more energy than chains, though most of that loss comes from the internal gear hub rather than the belt itself. On an e-bike, the motor more than covers the difference.
How Long Does a Belt Drive Last?
A well-maintained belt typically lasts two to four times as long as a chain, with a lifespan of up to 30,000 km (around 19,000 miles) for a belt that is kept clean and correctly tensioned. The sprockets wear too, sometimes at the same rate as the belt and sometimes faster or slower, so have them checked whenever the belt is replaced.
Those numbers come from Tern's belt care guide; Tern builds bikes around Gates belts. Gates' own claim, quoted in eBikeTips' guide to belt drives, is more cautious: more than twice as long as a chain. Treat the higher figures as a best case. Real-world life depends on your riding, the load you carry, the hub you have and, above all, belt tension.
A chain on an e-bike, by comparison, works hard. Mid-drive motors push their torque through it, and grit plus neglect speed up wear. Most riders would get through two or more chains in the life of one belt.
What maintenance does a belt drive need?
Very little. You never oil a belt, and you shouldn't try - lubricant attracts dirt and can damage it. When it's visibly mucky, rinse it with water and a soft brush. That's the full cleaning routine.
The one thing that matters is tension. A belt that is too slack can skip teeth under load, while one that is too tight wears the belt, sprockets and bearings faster. Tern's guide points to Gates' free Carbon Drive app, which listens to the note the belt makes when you pluck it and tells you whether the tension is in range.
Signs your belt needs attention include squeaking, the belt jumping a tooth when you push hard, or it starting to ride off the side of a sprocket. All three are worth getting checked at your next service.
Every so often, look over the belt and sprockets for cracks, fraying or damaged teeth. Tension and alignment are also worth re-checking after any job that involves taking the rear wheel out, such as fixing a puncture. If your bike has hub gears or a gearbox, follow the manufacturer's service intervals for those too - and the rest of the bike still needs the usual tyre, brake and safety checks. Our e-bike servicing guide explains what a mechanic covers and how often to book one.
Why Do Belt Drive E-Bikes Use Hub Gears?
A belt can't move sideways across a cassette the way a chain does, so derailleur gears are out. Belt drive e-bikes use a single speed, internal hub gears (where the gear mechanism is sealed inside the rear hub) or, on some higher-end bikes, a gearbox. The frame also needs a split in the rear triangle so the closed belt loop can be fitted.
Hub gears suit a belt well. They are sealed from rain and grit, you can change gear while stationary at the lights, and there's no derailleur hanging off the back of the bike to get knocked in a rack or a car boot.
The bikes we sell take three approaches. The E-Go Lite 3S and CarbonLite 3S use Shimano 3-speed hub gears that you shift yourself. The Hygge Virum Auto and Herlev Auto build automatic 3-speed gearing into the rear hub motor, so the bike picks the gear for you based on speed and effort. The E-Go CarbonLite is single speed, with its 75 Nm mid-drive motor doing the work of extra gears.
The downside is range. Three gears is plenty for town riding, but a derailleur system offers a wider spread for long, steep climbs. On an e-bike the motor fills much of that gap - our guide to how electric bikes work on hills explains why assistance matters more than gear count for most riders.
The frame requirement has a knock-on effect. Because the rear triangle has to open, you can't convert most chain bikes to a belt. A belt drive is something you choose when you buy the bike, not an upgrade you add later.
Is a Belt Drive E-Bike Right for You?
A belt drive e-bike is ideal if you ride mostly in towns and cities, commute in everyday clothes, store your bike indoors or simply don't want to spend weekends cleaning a drivetrain. It suits folding bikes particularly well. If you ride long, steep routes or want cheap parts available at any bike shop, a chain is still the more flexible choice.
Folders are where belts make the most sense. You handle a folding bike every day - lifting it onto trains, into lifts and under desks - so a drivetrain with no oil on it is a practical advantage, not a luxury. Four of the five belt drive bikes we stock are folders, and you can compare them against chain-driven models in our folding e-bike range.
Wet-weather riders benefit too. A belt shrugs off rain and road spray that would leave a chain gritty and rusting, which is one reason belts are popular on year-round commuter bikes. Leisure riders and anyone using an e-bike for shopping trips and short errands get the same benefit: a bike that is clean and ready whenever you want it. For the bigger picture on water and electrics, see can electric bikes get wet?
The other side of the ledger is worth stating plainly. Replacement belts and sprockets cost more than a chain, and Cycling UK notes that far fewer shops stock them. eBikeTips makes a similar point: a belt costs more than a chain, but it lasts so long that you replace it far less often. The real saving is time and effort rather than a guaranteed cut in running costs, so before you buy, ask whether replacement belts and sprockets for that bike are easy to get, roughly what they cost and where it can be serviced.
If your riding is mostly hilly countryside or you want 8 or more gears and the freedom to fix things anywhere, a chain-driven e-bike will serve you better. For everyone else, a belt is one of the simplest ways to cut down on maintenance - just judge the whole bike, from the motor and battery to the brakes and gearing, rather than the drivetrain alone.
Frequently Asked Questions
Do belt drive bikes need oil?
No. A belt drive runs dry and should never be oiled or greased, because lubricant attracts dirt and can damage the belt. To clean it, rinse it with water and a soft brush when it looks dirty. That is the only cleaning a belt needs.
Can a bike belt snap?
It can, but it is rare when the belt is fitted and tensioned correctly. Bending, twisting or kinking the belt can damage its carbon cords, and poor alignment or the wrong tension also shorten its life. Having the tension checked at each service is the simplest way to avoid problems.
How often do you need to replace a bike belt?
Tern says a regularly cleaned belt should last at least two to four times as long as a chain, with a lifespan of up to 30,000 km, while Gates claims more than twice a chain's life. Real-world life depends on riding style, load and tension. The sprockets wear too, so have them checked when the belt is replaced.
Can you convert a chain e-bike to a belt drive?
In most cases, no. A belt is a closed loop, so the frame needs a split in the rear triangle to fit it, plus compatible sprockets and single-speed, hub or gearbox gearing. Most chain frames don't have this, so a belt drive is a choice you make when buying the bike.
Are belt drive e-bikes good for hills?
For most UK hills, yes. Belt bikes have fewer gears than derailleur bikes, but the motor provides much of the help on climbs. Very long, steep gradients are where a wide-range derailleur system still has the edge, especially on hilly rural routes.
Are belt drives quieter than chains?
Yes. A correctly tensioned belt is close to silent, with none of the clicking or rattling of a chain on a cassette, though you will still hear the motor and tyres. A squeak from a belt drive usually means the tension or alignment needs adjusting, or the belt needs a rinse to remove grit.
Are belt drive e-bikes worth the extra cost?
For commuters and city riders, usually yes. You pay more upfront, but you avoid regular chain cleaning, oiling and replacement, and the belt typically lasts much longer than a chain. If you ride long, steep routes or want the cheapest possible parts, a chain may suit you better.
Key Takeaways
- Choose a belt drive if you want a clean, quiet, oil-free e-bike that needs almost no drivetrain maintenance.
- Expect a belt to last two to four times as long as a chain, provided it stays clean and correctly tensioned.
- Accept fewer gears - belt drive e-bikes use single-speed, hub gears or a gearbox, never derailleurs.
- Buy a belt drive from the start, as most chain frames can't be converted.
- Look at belt drive folders first if you commute by train or store your bike indoors.
