Dawes Arc Electric Folding Bike 250W

The Arc features a 375Wh integrated battery, offering up to 40km/64 miles of range and recharging fully in 5 hours. It is powered by a Bafang rear hub motor system that provides 32Nm of torque, making hill climbs effortless and flat terrain easy to navigate. The motor includes various assist modes, which are adjustable via a backlit handlebar display that also shows battery level, current speed, trip distance, and total distance.

Equipped with a 1x7 speed Shimano Altus/Tourney gearing system and an upgraded trigger shifter, the Dawes Arc ensures smooth and reliable gear changes. Its mechanical disc brakes provide confident stopping power in all weather conditions. The bike uses 20" wheels with high-volume 20x2.40" tyres, balancing comfort, stability, and speed while maintaining a compact foldable size without adding excessive weight.

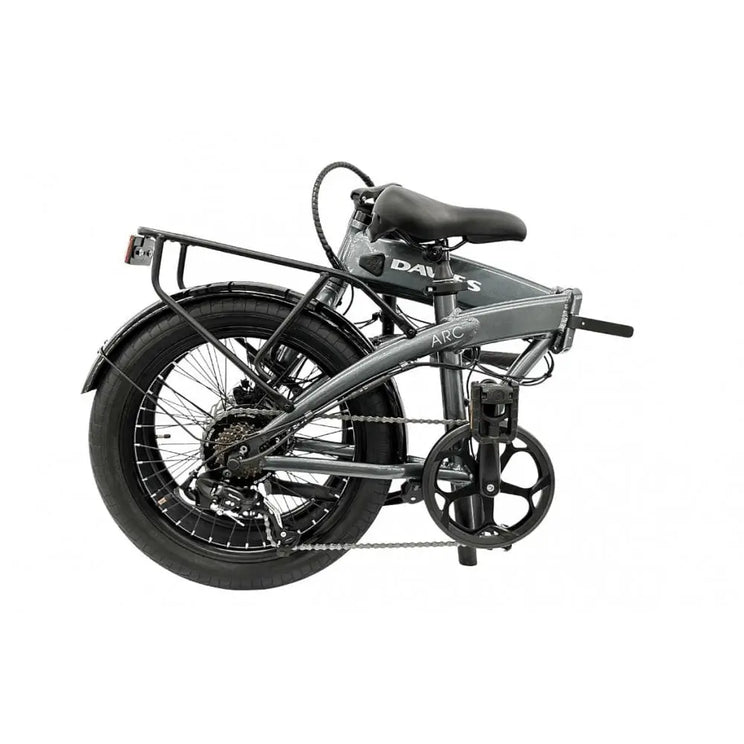

The Dawes Arc is designed for easy folding in just three steps, taking less than 15 seconds to collapse or reassemble. Its lightweight alloy frame, adjustable height stem, and one-size-fits-all geometry accommodate riders from 5'0" to 6'2" (152cm to 188cm). For practical use, it includes a pannier rack, full-length mudguards, and a kickstand, making it well-suited for all-weather riding and commuting.

Maximum Range 40 miles / 64km
Recharge Time 5 hours
Maximum Assisted Speed 15.5mph / 25kmh
Motor Bafang rear hub motor, 32nm torque
Motor Type Rear hub motor
Motor Torque 32nm
Battery 36V 10.5Ah, 378wh Integrated battery
Battery Type Integrated
Charger 36V 2A, 3 pin UK plug
Display Key Display KD-21C mode selection, battery indicator, current speed, distance and trip distance
Speed Sensor Cadence sensor
Frame Dawes 6061 alloy folding frame with integrated battery
Fork Dawes, Steel
Headset 1-1/8"
Handlebar Alloy riser bars, 600mm wide
Stem Alloy folding with adjustable height, Black
Grips Comfort style
Gear Shifters Shimano Altus SL-M315 trigger shifter, 7 speed
Rear Derailleur Shimano Tourney RD-TY500, 7 speed
Chain KMC Z7, 7 speed
Cassette/Freewheel Shimano MF-TZ500, 14-34T, 7 speed
Chainset Alloy, 52T with double chain guard
Number of Gears 7
Bottom Bracket Cartridge BB
Pedals 9/16" folding
Brakes Mechanical disc brakes, 160mm rotors
Brake Levers Alloy, Black
Front Hub Alloy, Quick release, Black
Rear Hub Bafang rear hub motor, 32nm
Rims 20" alloy, Black
Tyres Wanda P1472, 20x2.40"
Saddle Padded comfort saddle, Black
Seat Post Alloy 500mm, Black
Mudguards Full length mudguards, Black
Kickstand Adjustable kickstand
Pannier Rack Steel pannier rack, Black
Other Accessories Bell and chainguard

Dawes electric bikes typically arrive in 2-3 working days of your order date for the 85% assembled models. For this delivery option, the bike is mostly built but the front wheel and brakes/gears will need to be adjusted.

Our Dawes fully assembled electric models take a little longer, typically delivered in 3-6 working days dependant on how busy we are.

Suitable for riders 5'0" to 6'2" (152cm to 188cm)
