Dawes Spire 1.0 Crossbar Electric Hybrid Bike 250W (2025)

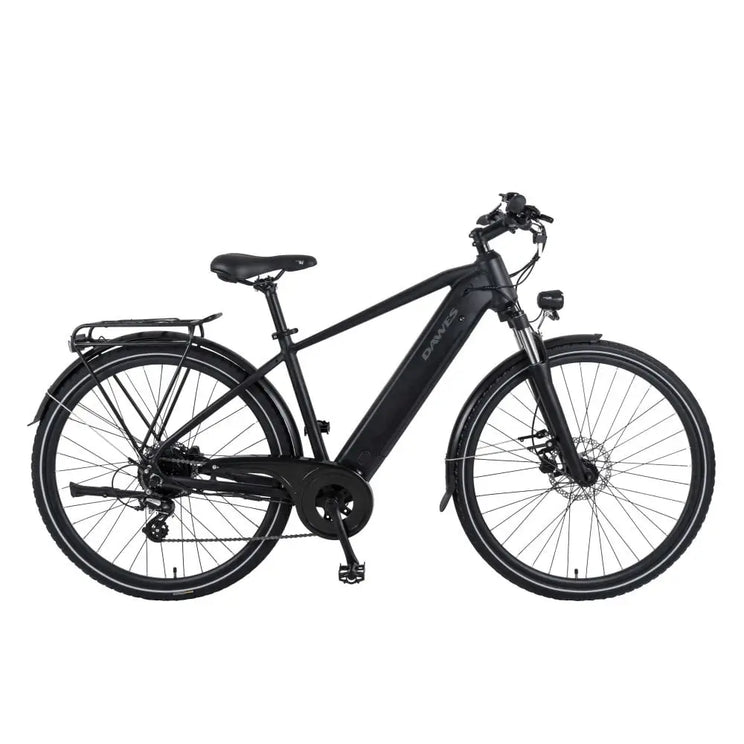

The Dawes Spire 1.0 Crossbar electric bike features a crossbar frame with an integrated 360Wh battery, providing over 40 miles (64 km) of assisted pedalling. Powered by a Bafang rear hub motor, the bike delivers reliable performance with 32Nm of torque, making uphill climbs and flat terrain effortless. The Samsung battery, which meets strict UK and EU safety standards, can be charged on or off the bike in five hours and is easily removable with an integrated lock for security.

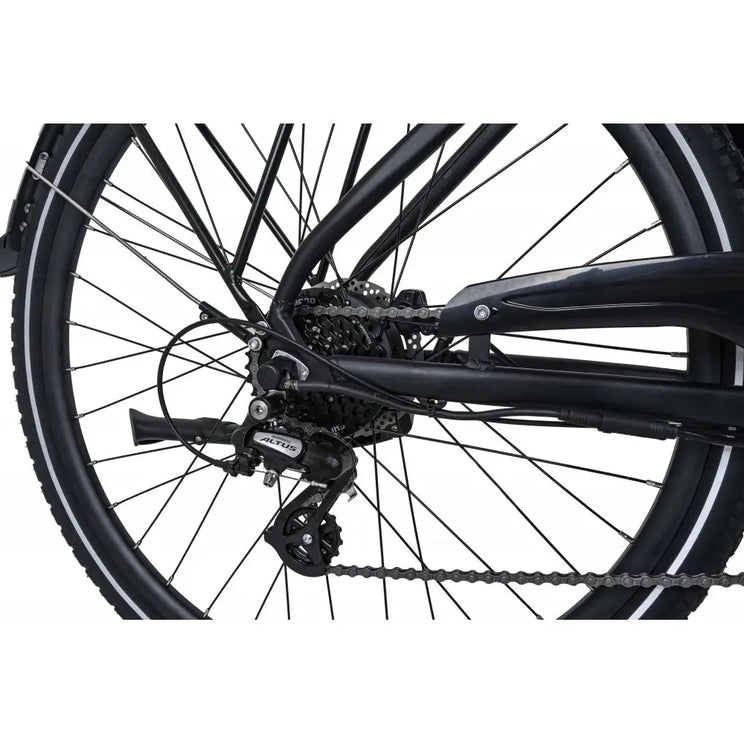

The bike is equipped with an intuitive display system that offers five power assist modes, tracking ride data such as speed, distance, and battery level. A walk assist mode is also included to help push the bike uphill when needed. The Spire 1.0’s Shimano Altus 1x8 speed gearing and Tektro hydraulic disc brakes ensure smooth control and handling, while a 70mm suspension fork with hydraulic lockout absorbs bumps on rough terrain.

Rider comfort is prioritised with a Selle Royal Freeway saddle, ergonomic grips, and alloy city pedals. The 700x45c Kenda tyres provide grip, puncture protection, and increased visibility with reflective detailing. Additionally, the bike comes standard with LED lights powered by the battery, a rear pannier rack, mudguards, and a kickstand, making it a practical choice for commuting and leisure rides.

Maximum Range: 40 miles / 64km
Recharge Time: 5 hours
Maximum Assisted Speed: 15.5mph / 25km/h
Motor: Bafang rear hub motor, 36V 250W, 32Nm torque, 25km/h max speed
Motor Type: Rear hub motor
Motor Torque: 32Nm
Battery: Integrated 360Wh (36V 10.0Ah), Samsung cells, Removable for charging on or off the bike
Battery Type: Integrated
Charger: 42V 2A, 3-pin UK plug

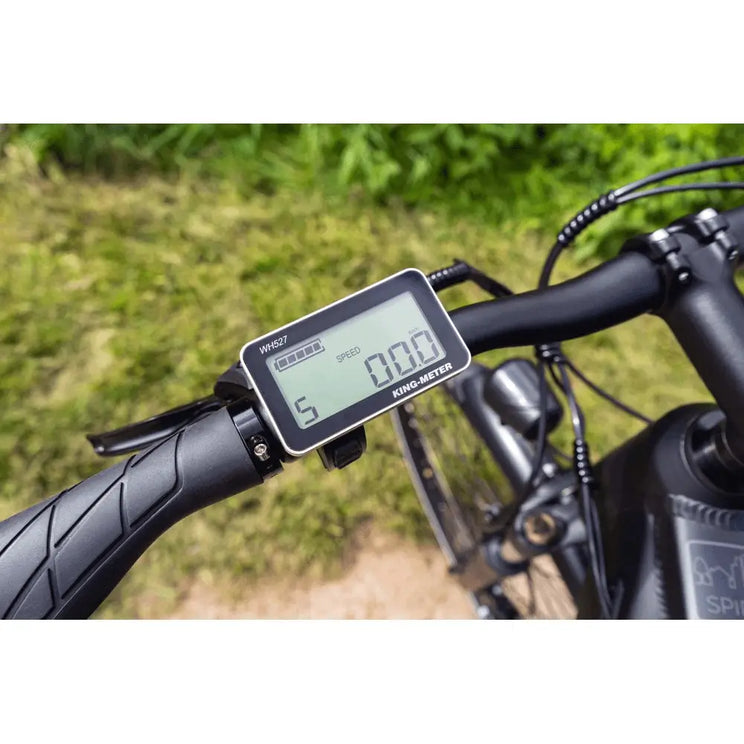

Display: Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time
Speed Sensor: Left hand crank mounted
Frame: 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Frame Size: Medium or Large
Fork: 700c suspension fork, Hydraulic lockout, 70mm travel
Headset: Sealed bearings
Handlebar: Aluminium, 680mm wide, 20mm rise, 6° backsweep
Stem: Aluminium, 90mm reach, 31.8mm
Grips: Ergonomic comfort, Lock on, Black
Gear Shifters: Shimano Altus SL-M315 Rapidfire Plus, 8 speed
Rear Derailleur: Shimano Altus RD-M310, 8 speed
Chain: KMC Z8.1, 8 speed
Cassette/Freewheel: Shimano Altus CS-HG200, 12-32T, 8 speed
Chainset: Aluminium, 42T, 170mm
Number of Gears: 8
Bottom Bracket: Sealed
Pedals: Alloy city style, Black
Brakes: Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers: Tektro M275 hydraulic disc
Front Hub: Alloy with quick release, 36 hole
Rear Hub: Bafang rear hub motor, 36V 250W, 32Nm torque, 25km/h max speed
Rims: 700c double wall alloy, 36 hole
Tyres: Kenda K197, 700x45c, Puncture protection and reflective side strip
Saddle: Selle Royal Freeway
Seat Post: Aluminium, 350mm, 30.4mm
Lights: Front - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards: Full length, 56mm wide, Black
Kickstand: Chainstay mounted, Aluminium
Pannier Rack: Aluminium with rear light mounted

Dawes electric bikes typically arrive in 2-3 working days of your order date for the 85% assembled models. For this delivery option, the bike is mostly built but the front wheel and brakes/gears will need to be adjusted.

Our Dawes fully assembled electric models take a little longer, typically delivered in 3-6 working days dependant on how busy we are.

Recommended Rider Heights:

Medium: 5'4" to 5'10" (162cm to 178cm)

Large: 5'10" to 6'2" (178cm to 188cm)

Every Dawes bike we supply includes a manufacturer's warranty valid for the original owner, with coverage as follows:

• 5 Years: All rigid steel and titanium frames and forks.
• 3 Years: All rigid alloy frames and forks.
• 1 Year: Suspension frames/forks, paintwork and decals, carbon fibre frames/forks, original parts, suspension components, electrical components, and branded components.

Branded components such as SR Suntour, Rockshox, Shimano, and Avid are covered by their respective manufacturer’s warranty.

The warranty excludes normal wear and tear, improper assembly or maintenance, installation of incompatible parts, damage from accidents or misuse, and labour or transport costs for replacements. Proof of purchase and product registration are required to make a claim, and the warranty is only valid for the original owner from the date of purchase.

For any questions regarding this, please contact us on info@bikeyardonline.co.uk

We’ve got you covered with a range of payment options. Every transaction is secured with industry-standard encryption, so you can shop with confidence. Take a look at the options below:

Buyline Finance - 0% APR Over Up To 11 Months

With Buyline Finance, you can spread the cost of your new wheels across up to 11 monthly payments with 0% APR. Simply choose between 6, 9, 10, or 11 month payment plans and select the deposit you wish to pay (between 0-50%).

For further information or to order with this option, you can find our dedicated page here.

Other Ways To Pay

We accept all major credit/debit cards, PayPal, Klarna, and even Bank Transfer.

PayPal

Paying with PayPal is simple, quick, and secure. Just select PayPal at checkout to order. We receive instant payment confirmation, allowing us to process your order without delay.

Klarna

Klarna’s "Pay Later" lets you receive your order upfront and pay within a set period (usually between 2 weeks and 2 months) with no interest or fees. In their app, you can pay early or extend the due date if needed.

Klarna also offers "Pay in 3" which splits the total into three equal interest-free instalments.

Bank Transfer

Want a further discount on your purchase? Save an additional 2% on all orders when you pay by bank transfer. Just let us know which model you're after, and we will send you an invoice with the discount already applied.

Score big with the Cycle to Work scheme

If your employer’s already signed up (or is ready to join), you can save up to 47% on any of our road-legal electric bikes and spread the payments (along with accessories!) It's a brilliant way to get an e-bike without breaking the bank!

Important note: Only bikes meeting EAPC regulations and with motors offering a maximum continuous rated power output up to 250W are eligible for the scheme.

Got your voucher sorted?

If you've already got your cycle to work voucher (also known as a certificate or letter of collection (LOC)), just shoot it over to us at info@bikeyardonline.co.uk.

Once we’ve got your voucher, we’ll get your new e-bike rolling. We’ll also guide you through the process and keep you updated with tracking info once it’s on the way!

Not got your voucher yet?

If your workplace is signed up but you don’t have a voucher in hand, no worries! Ask your employer to request a voucher based on the bike you want. Once they’ve sorted it, send it our way and we’ll handle everything from there.

Employer not signed up to a scheme?

Not a problem! Reach out to us, and we can even help them sign up to one quickly and with no up-front cost.

Learn more about our Cycle to Work schemes

Need more info? Click here to explore how the Cycle to Work scheme works. You can also contact our friendly team - we're always happy to help!

In the UK, only e-bikes that comply with EAPC regulations can be ridden on public roads without tax, insurance, or registration. You can find out more about the EAPC Regulations from our legal guide here, or via the government website.

For any questions regarding this, please reach out to us on info@bikeyardonline.co.uk and we will be happy to assist.
